The formula of PP flame retardant masterbatch is generally divided into bromo-antimony V-2 or halogen-free V-0 flame retardant masterbatch, PP V-2 flame retardant masterbatch addition is small, high flame retardant efficiency, high temperature resistance, hot wire resistance, high gloss and other characteristics, in homopolymer and copolymer polypropylene can be applied. PP flame-retardant masterbatch in PP pipe, bellows, filler rope, sheet and other different processes corresponding to the model, flame retardant formula, the amount of addition is different. The following to PP flame retardant masterbatch LXM-PPMC8013(plate type) for description. If you need other types of TDS, please contact our factory sales or customer service.

1.Introduction

Name: PP plate flame retardant masterbatch

Model: PPMC8013

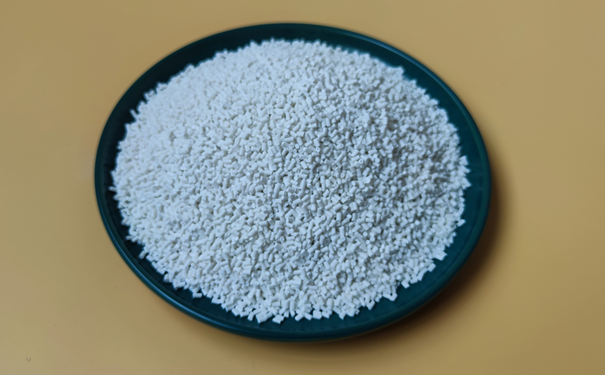

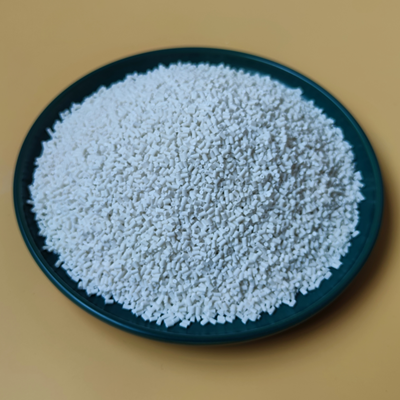

Appearance: White cylindrical particles

Melting index: 25 g/10min(230℃, 2.16kg)

Flame retardant content ≥30%

Bromine content ppm: 7000-8000

Amount added: 5-6%

Environmental standards: ROHS

Flame retardant level: UL94 V2

Application: PP sheet, injection molding, film, etc

2,Product features

High flame retardant efficiency, out of the fire, add less, masterbatch whiteness is high, does not affect the color of the product can be matched with the total color.

(2) Flame-retardant products have small density, low smoke, small mold corrosion, high product gloss, easy processing, flat surface, non-stick roll.

(3) Widely used in corrugated pipe, hollow plate, automotive interior plastic parts, decorative plate, plating tank, injection molding parts, plate, hollow plate, blown film, casting film, etc.

(4) The formula of PP flame retardant masterbatch LXM-PPMC8013 adopts environmental protection antimony bromide flame retardant, which does not produce toxic DBDO and DBDF after decomposition, and meets the environmental protection requirements of ROHS and REACH.

(5) Excellent thermal stability,It can  be repeatedly processed, flame retardant effect, strength, color  has not changed significantly.

(6) The polypropylene prepared by adding PP flame retardant masterbatch LXM-PPMC8013 has the characteristics of small mold corrosion, small density, low smoke, small mold corrosion, etc.

(7) Stress cracking resistance, wear resistance, tensile strength, compressive strength, surface hardness and elastic modulus.

3,Application data

(1) Copolymerized PPk8003(50%) : homopolymerized PPt30s(50%) :PPMC8013 flame retardant masterbatch (6%), 0.8mm,1.6mm flame retardant out of the fire.

(2) Copolymerized PPk8003(50%) : Homopolymerized PPt30s(50%) :PPMC8013 flame retardant masterbatch (5%), 0.8mm,1.6mm flame retardant out of the fire for 1-2 seconds.

(3) Copolymerized PPk8003(60%) : homopolymerized PPt30s(40%) :PPMC8013 flame retardant masterbatch (7%),

0.8mm,1.6mm flame retardant from the fire 1-2 seconds extinguish.

(4) Copolymerized PPk8003(60%) : homopolymerized PPt30s(40%) :PPMC8013 flame retardant masterbatch (8%), 0.8mm,1.6mm flame retardant out of the fire for 1 second.

(5) Copolymerized PPk8003(40%) : homopolymerized PPt30s(60%) :PPMC8013 flame retardant masterbatch (5%), 0.8mm,1.6mm flame retardant out of the fire for 1 second.

4, Test data

Table 1: Application test data of barium sulfate in PPMC8013 flame retardant masterbatch

Conclusion: In the flame retardancy of homopoly PP, the addition of barium sulfate is less than 20%, which has little effect on flame retardancy, and with the increase of the addition of flame retardancy masterbatch, the flame retardancy is not much improved;

The bromo-antimony in PP flame retardant masterbatch LXM-PPMC8013 can play a good synergistic flame retardant effect, after reaching the decomposition temperature, the flame retardant masterbatch decomposed HBr and antimony compounds, and formed SbBr3 after further absorbing heat, HBr and SbBr3 themselves have a good flame retardant effect, and can also diluted the combustible gas and oxygen around polypropylene. The SbBr3 after the decomposition of PP flame retardant masterbatch LXM-PPMC8013 has a certain char forming effect, covering the surface of PP material, preventing internal and external heat exchange, and playing a flame retardant role of condensate phase.
